USB passthrough can be a pain sometimes while using virt-manager.

If the previously connected device isn't connected at the time of starting the VM, it will refuse to boot at all complaining about a missing USB device.

But manually adding & removing the USB device each time isn't ideal, so let's automate it!

Components:

• Linux Host
• Windows VM
• USB device to pass from the host to the vm
• Python
• pyudev
• subprocess
• json
• virsh
• SystemD

The idea

Use udev to listen to usb events and pass that to the vm using virsh

Code

/etc/systemd/system/vm_usb_passthrough.service

The ExecStart requires to be modified with the actual location of the Python script. ``` [Unit] Description=VM USB Passthrough

[Service] Type=simple WorkingDirectory=/home/[USER]/Documents/python/vm_usb_passthrough ExecStart=/home/[USER]/Documents/python/vm_usb_passthrough/main.py User=root

[Install] WantedBy=multi-user.target ```

~/Documents/python/vm_usb_passthrough/config.json

Example config to pass a USB device by vendorID and ProductID to a specified VM json { "devices": [ { "vid": "0483", "pid": "3748", "vm": "RDPWindows" } ] }

~/Documents/python/vm_usb_passthrough/rquirements.txt pyudev==0.24.0

~/Documents/python/vm_usb_passthrough/main.py

Place this Python script in a logical place that is not prune for user error (eg. deletion). ```py

!/usr/bin/python3

import json import subprocess import pyudev

config = None current_devices = {} known_devices = {} connected_devices = {}

with open("config.json", 'r') as f: config = json.load(f)

if config is None: print("ERROR: config.json not found!") exit(-1)

def updateKnownDevices(): global known_devices global current_devices

current_devices = {}

try:
    lsusb_output = subprocess.check_output(['lsusb']).decode('utf-8').strip().split("\n")
    for line in lsusb_output:
        vid, pid = line.split(" ")[5].split(':')
        vendor_name = line.split(" ")[6]
        product_name = line.split(" ")[7]

        known_devices[f'{vendor_name}:{product_name}'] = f'{vid}:{pid}'
        current_devices[f'{vendor_name}:{product_name}'] = f'{vid}:{pid}'
except subprocess.CalledProcessError as e:
    pass

def get_target_vm_name_from_config(vid, pid): global config

for entry in config["devices"]:
    if entry["vid"] == vid and entry["pid"] == pid:
        return entry["vm"]

return None

def check_if_vm_is_running(name): vm_running = False try: if "running" in str(subprocess.check_output(['virsh', 'domstate', name])): vm_running = True except subprocess.CalledProcessError as e: pass

return vm_running

def process_device_to_vm(vid, pid, is_connect): vm = get_target_vm_name_from_config(vid, pid)

if vm is None:
    print(f'VM not found for device {vid}:{pid}...')
    return

if not check_if_vm_is_running(vm):
    print(f'VM {vm} is not running, skipping device {vid}:{pid}...')
    return

command = None
if is_connect:
    print(f'Connecting device {vid}:{pid} to VM {vm}...')
    command = f"""bash -c 'echo "<hostdev mode=\\"subsystem\\" type=\\"usb\\" managed=\\"yes\\"><source><vendor id=\\"0x{vid}\\"/><product id=\\"0x{pid}\\"/></source></hostdev>" | sudo virsh attach-device {vm} /dev/stdin'"""
else:
    print(f'Disconnecting device {vid}:{pid} from VM {vm}...')
    command = f"""bash -c 'echo "<hostdev mode=\\"subsystem\\" type=\\"usb\\" managed=\\"yes\\"><source><vendor id=\\"0x{vid}\\"/><product id=\\"0x{pid}\\"/></source></hostdev>" | sudo virsh detach-device {vm} /dev/stdin'"""

if command is not None:
    try:
        subprocess.check_output(command, shell=True)
    except subprocess.CalledProcessError as e:
        pass

context = pyudev.Context() monitor = pyudev.Monitor.from_netlink(context) monitor.filter_by("usb")

for action, device in monitor: updateKnownDevices()

vendor_name = device.get("ID_VENDOR_FROM_DATABASE", None)
product_name = device.get("ID_MODEL_FROM_DATABASE", None)

if (vendor_name is None or product_name is None) and action != "remove":
    continue

vid = None
pid = None
if vendor_name is not None and product_name is not None:
    for key in known_devices:
        value = known_devices[key]
        if vendor_name in key and product_name in key:
            vid, pid = value.split(":")

if vid is None or pid is None:
    if action == "remove":
        for device in connected_devices:
            if connected_devices[device] == 1:
                vid, pid = device.split(":")
                if not (vid in current_devices.values() and pid in current_devices.values()):
                    connected_devices[device] = 0
                    process_device_to_vm(vid, pid, False)
                break
    continue

has_connected = False
has_disconnected = False

if f'{vid}:{pid}' not in connected_devices:
    connected_devices[f'{vid}:{pid}'] = -1

if action == "bind":
    if connected_devices[f'{vid}:{pid}'] != 1:
        connected_devices[f'{vid}:{pid}'] = 1
        has_connected = True
elif action == "remove":
    if connected_devices[f'{vid}:{pid}'] != 0:
        connected_devices[f'{vid}:{pid}'] = 0
        has_disconnected = True

if has_connected:
    process_device_to_vm(vid, pid, True)
elif has_disconnected:
    process_device_to_vm(vid, pid, False)

```

Starting

Installing the Python script requirements for the user specified in the service ```

user

pip3 install /path/to/requirements.txt

root

sudo pip3 install /path/to/requirements.txt ```

Enable and start the service ```

systemctl daemon-reload

systemctl enable vm_usb_passthrough.service

systemctl start vm_usb_passthrough.service

```

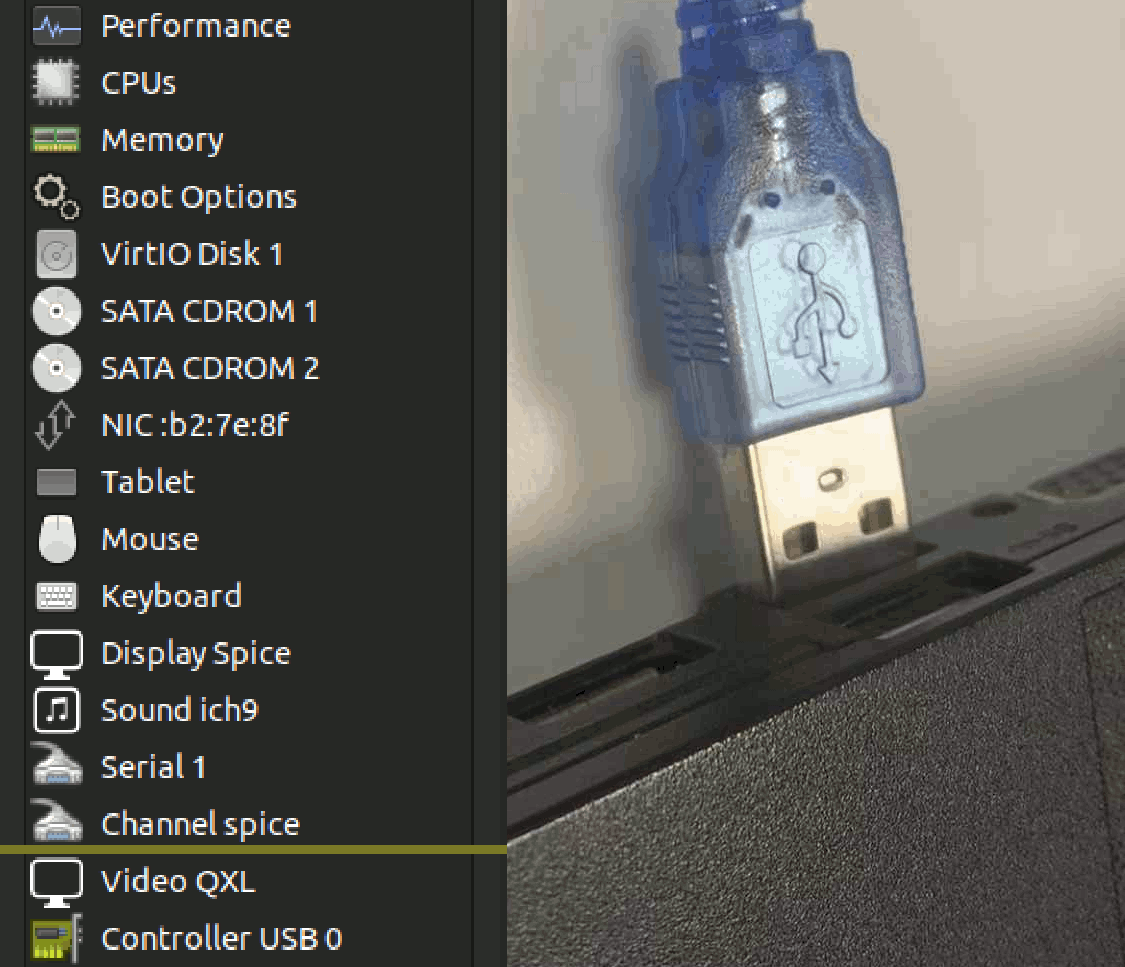

Demo
